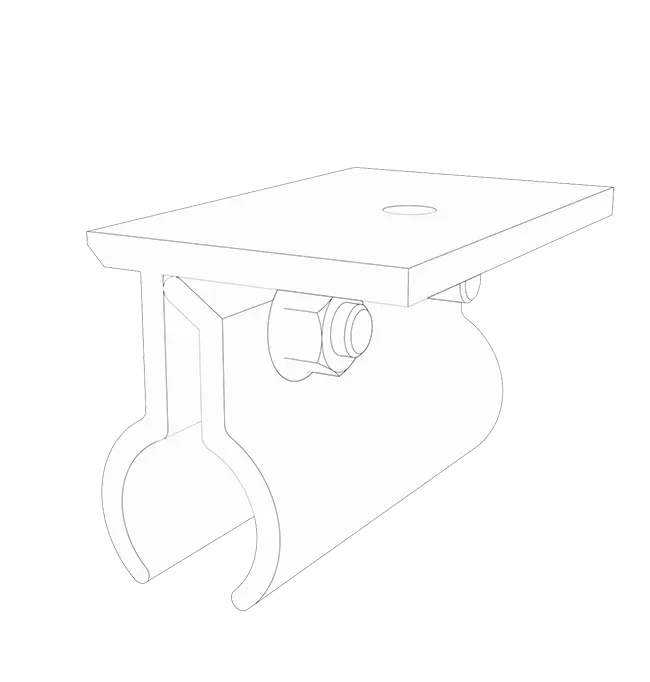

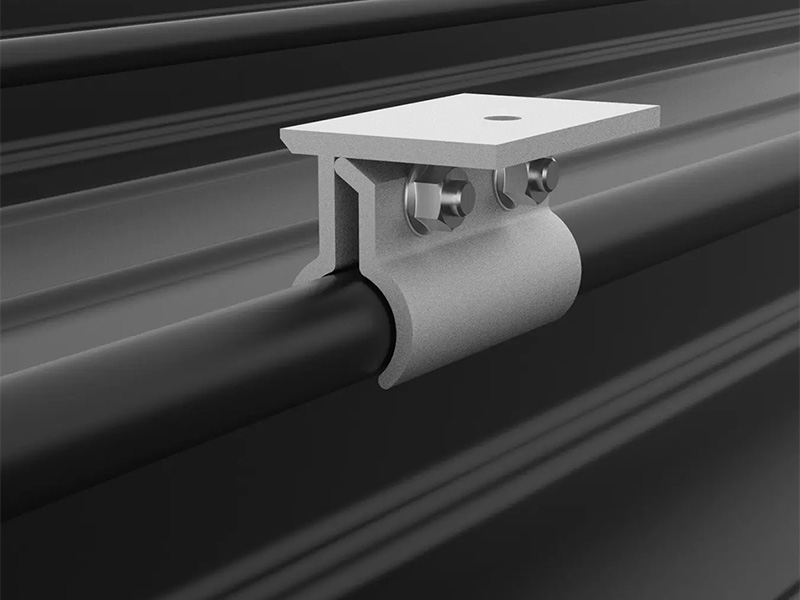

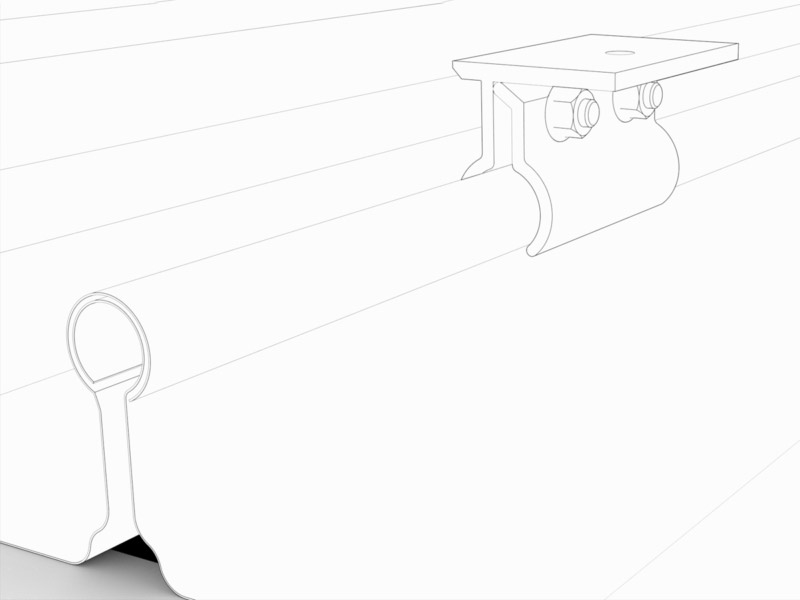

The TGPL_KLZP is a part of the K Bracket series, designed for a seamless connection with Kalzip high seam roofs. Its aerodynamic design and proven durability ensure long-lasting performance.

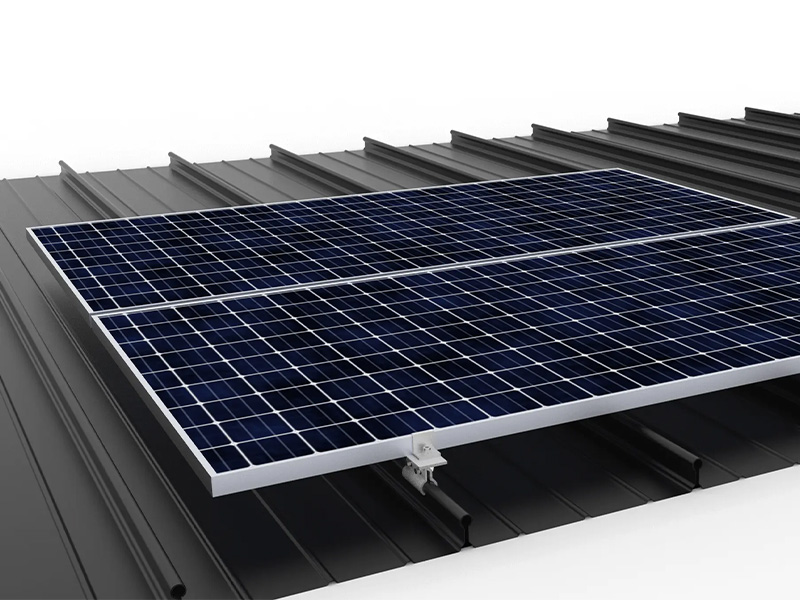

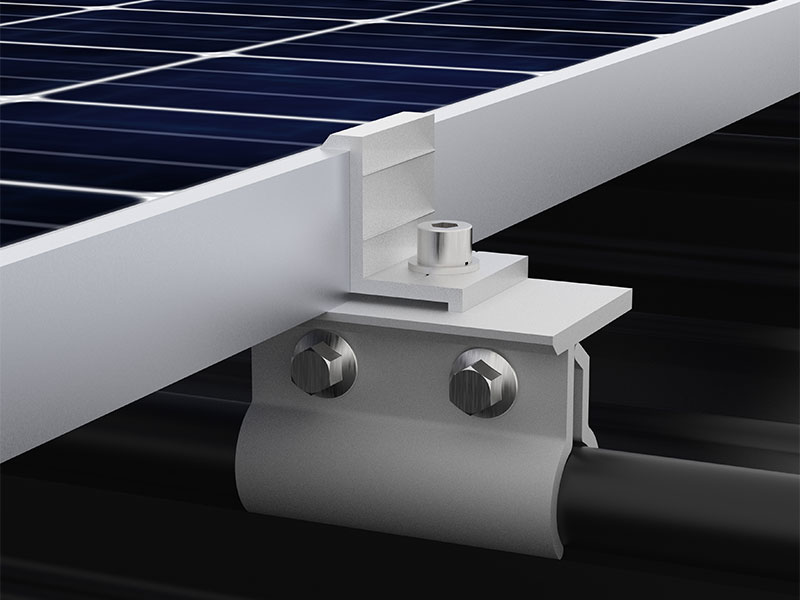

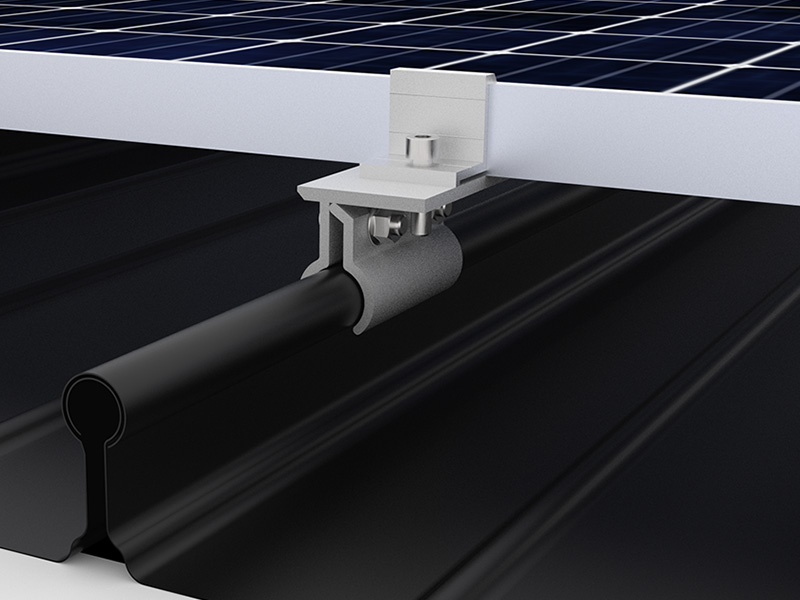

The TGPL_KLZP Seam Roof PV Mounting System is designed for high seam roofs and is compatible with various materials like galvanized steel and zincalume. It fits any standard rib distance and accommodates roof slopes up to 15°. Made from stainless steel and Aluminium 6063, it offers a profile height of 16-65 mm and withstands wind speeds up to 55 m/sec². Supporting PV modules with frame heights between 30-50 mm, it’s available in landscape orientation, with portrait optional. Certified for wind loads by ABS Industrial Verification, the system comes with a 20-year warranty.
Application Area
System Warranty
| Rib Distance | Can be fit to any standard rib distance |
|---|---|
| System Orientation | South |
| Structure Tilt (º) | Flush mounted |
| Material | Stainless Steel, Aluminium 6063 T6 |
| Type | PV modules with frame height between 30-50 mm |
| Module Size (max) | Length: any; Width: any |
| Orientation | Landscape |
